Thermal limits define the absolute boundaries of modern material engineering. Specifying this alloy for industrial fabrication, heavy casting, or high-stress marine environments demands precise knowledge of these thresholds. Miscalculating the melting point or maximum service temperature invites sudden disaster. Such engineering errors cause premature structural failure under heavy loads. They also lead to poor weld quality like severe hot cracking. Foundry teams face highly inefficient casting processes when temperatures drift off target. This guide establishes the exact thermal thresholds governing this unique metal. You will discover how these physical limits dictate fabrication methods on the shop floor. We will provide clear frameworks for evaluating it against alternative alloys. You will learn how to verify material compliance before full-scale manufacturing begins. Mastering these parameters ensures your next engineering project remains safe, durable, and structurally sound.
The standard silicon bronze melting point ranges between 1,880°F to 1,940°F (1,025°C to 1,060°C), depending on the specific alloy grade.
While it has a high melting threshold, the maximum continuous silicon bronze temperature range for load-bearing structural integrity is significantly lower (typically capped around 400°F/200°C).
Silicon acts as a deoxidizer, giving the alloy excellent fluidity for casting and distinct advantages in TIG/MIG welding compared to standard brass or copper.
Engineers must evaluate specific ASTM grades (e.g., C65100 vs. C65500) as varying zinc and silicon ratios marginally shift thermal behavior and mechanical stability.
Phase-change temperatures determine how metals behave under extreme heat. We define the solidus temperature as the exact point melting begins. For this specific alloy, solidus occurs near 1,780°F (971°C). The liquidus temperature marks the fully molten state. This happens around 1,880°F (1,025°C). This narrow freezing range affects shrinkage during the cooling phase. Fast transitions from liquid to solid reduce massive internal volume changes. Foundry workers rely on this tight window heavily. It ensures excellent dimensional accuracy in complex finished components.
Grade-specific variations alter these baseline thermal metrics significantly. You must evaluate the exact composition before planning production. C65500 represents the most common high silicon variant. It contains roughly 3% silicon by weight. This grade exhibits exceptional heat retention during fabrication. C65100 represents the widely used low silicon variant. It contains approximately 1.5% silicon. Reduced silicon alters thermal conductivity across the material matrix. It shifts the melting threshold slightly upward. Engineers choose C65100 when they need moderately faster heat dissipation.
Understanding the core silicon bronze properties requires mapping several interconnected variables. The melting threshold directly influences the thermal expansion coefficient. High temperatures cause measurable physical expansion in structural joints. Thermal conductivity also plays a vital role in everyday fabrication. This alloy conducts heat much slower than pure commercial copper. In fact, its thermal conductivity sits around 9% of pure copper. You must implement specific heat management strategies during processing. Slow heat transfer traps thermal energy locally. This localization affects structural stability over extended time periods.
Maximum service temperatures dictate real-world safety parameters. Tensile strength degrades long before the metal liquefies completely. Yield strength drops sharply at elevated ambient temperatures. We generally cap the continuous silicon bronze temperature range around 400°F (200°C). This limit applies strictly to load-bearing tasks. Exceeding this limit compromises mechanical fasteners permanently. Pressure vessels also face severe risks under similar conditions. Safe continuous operating parameters demand strict adherence to these boundaries. ASME codes often restrict its use in high-pressure steam environments.
Performance under extreme conditions requires careful structural analysis. High-heat environments pose hidden dangers for long-term installations. Creeping occurs under constant stress at high temperatures. The metal slowly deforms even below its yield strength. Softening happens prior to reaching the actual silicon bronze melting temperature. Engineers must calculate load thresholds accordingly to prevent failure. Prolonged exposure to 500°F (260°C) weakens load-bearing joints permanently. Industrial boilers and exhaust systems exceed these safe operating windows.
Cryogenic environments present a starkly contrasting reality. Sub-zero temperatures actually benefit this specific material category. The alloy retains high ductility in freezing conditions. It often increases in overall tensile strength. Many industrial metals become dangerously brittle in extreme cold. Carbon steel fractures easily under cryogenic stress. This alloy resists the ductile-to-brittle transition entirely. This unique characteristic makes it exceptionally useful. You will often see it in cryogenic fluid valves and deep-sea pressure fittings.
Welding and brazing require precise thermal control methodologies. Heat input management dictates final weld quality. Low thermal conductivity traps heat near the weld pool. Localized heat builds rapidly during the joining process. TIG and MIG welding require specific electrical current adjustments. Excessive localized heat causes a defect called hot shortness. This phenomenon creates severe micro-cracking during the cooling phase. Welders must move quickly across the joint. They should avoid lingering over a single spot unnecessarily. Heat sinks help manage excessive thermal buildup.
Filler metal compatibility ensures structural success during fabrication. You must match filler rod melting points carefully. The filler must melt cohesively alongside the parent metal. Mismatched rods cause poor adhesion and joint failure. They also lead to dangerous over-penetration. You should use ERCuSi-A filler rods for optimal results. This matching prevents structural weak points from forming. Shielding gas selection also plays a crucial role. Pure argon provides excellent arc stability. Argon-helium mixtures offer better penetration for thicker metal plates.
Casting and foundry operations depend heavily on molten fluidity. Silicon acts as a powerful deoxidizer during melting. It scavenges oxygen from the molten bath efficiently. This fluidity allows highly detailed architectural castings. Sculptors favor this material for intricate art pieces. Industrial components also benefit from this easy liquid flow. Pouring temperatures require strict regulation by foundry operators. Critical pouring temperatures range between 1,950°F and 2,050°F (1,065°C and 1,120°C). Foundries must monitor this thermal window closely. Pouring too cold causes incomplete mold filling. Pouring too hot causes excessive atmospheric gas absorption. Gas absorption leads directly to severe porosity defects.
Comparing materials prevents costly fabrication errors downstream. Standard brass contains significant amounts of zinc. High heat causes severe zinc vaporization during welding. This vaporization creates highly toxic airborne fumes. It also leaves porous, unacceptably weak welds. Silicon bronze lacks this high zinc content. This absence eliminates vaporization risks at high temperatures. Welders prefer it over standard brass for this exact reason. You can weld it safely without compromising joint integrity.
Aluminum bronze offers entirely different structural strengths. You must compare high-temperature strength retention objectively. Aluminum bronze excels in high-friction environments. It withstands intense mechanical wear and high ambient heat. We position aluminum bronze for heavy industrial gears. It handles bushing applications in heavy machinery perfectly. Alternatively, silicon bronze shines in highly corrosive environments. It serves structural marine and aesthetic architectural applications perfectly. It resists saltwater corrosion exceptionally well.
Engineers need a reliable decision framework for material selection. You can streamline shortlisting using three specific criteria.
Evaluate maximum ambient temperature: Keep continuous structural loads strictly below 400°F (200°C).
Assess the requirement for weldability: Choose silicon over standard brass to prevent gas porosity.
Analyze exposure to corrosive agents: Prioritize this alloy for marine environments or chemical exposure.
Alloy Thermal Comparison Chart
| Alloy Type | Typical Melting Point (Liquidus) | Continuous Service Limit | Primary Advantage |
|---|---|---|---|
| Silicon Bronze (C65500) | 1,880°F (1,025°C) | 400°F (200°C) | Excellent weldability and fluid casting |
| Standard Brass (C26000) | 1,750°F (954°C) | 300°F (149°C) | High machinability and low cost |
| Aluminum Bronze (C95400) | 1,900°F (1,037°C) | 500°F (260°C) | High-friction wear resistance |

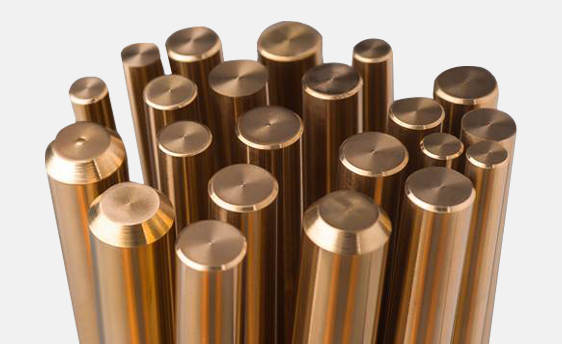

Industry standards govern long-term material reliability. ASTM specifications dictate strictly acceptable alloy compositions. ASTM B98 covers standard rod and bar stock parameters. ASTM B315 governs pipe and extruded tube forms. These standards ensure highly predictable thermal behaviors. You must demand compliance documentation from your suppliers. Non-compliant materials behave unpredictably under thermal stress. Off-spec metal causes massive project delays and cost overruns.
Mitigating procurement risks protects your entire fabrication process. Unwanted tramp elements ruin core material integrity. Lead or excessive iron contamination alters physical structural limits. These impurities can shift the exact silicon bronze melting point. They also cause severe weld cracking during assembly. You must verify Material Test Reports (MTRs) thoroughly upon receipt. Cross-check the chemical breakdown against published ASTM standard limits. Reject any batches exceeding maximum allowable trace elements.
Next-step actions ensure consistent manufacturing success. Never scale production blindly based on theoretical data.
Request small sample lots from your chosen supplier.
Conduct independent thermal validation tests in your facility.
Perform destructive sample welds to check for hot shortness.
Verify practical machinability under your local shop conditions.
Document cooling rates for your specific casting molds.
Physical validation before full-scale rollout saves significant capital. It prevents catastrophic mechanical failures in the field. Proper testing guarantees your material matches your engineering design requirements.
Understanding thermal limits transforms raw material into reliable engineering solutions. The high melting threshold provides excellent fluidity for casting complex geometries. It also enables robust, porosity-free welding operations. However, practical engineering limits cap its continuous structural use. You must restrict high-stress applications to environments below 400°F. Never base structural material selection on the liquidus temperature alone. Always design around the safe working load temperatures to prevent creep deformation. We recommend consulting a certified metallurgist before finalizing critical structural designs. Review the specific ASTM data sheets for your chosen grade. Request a quote for certified stock to begin your validation testing today.
A: Yes. Mechanical properties degrade long before the metal liquefies. Yield strength drops significantly at elevated temperatures. The maximum continuous service temperature sits around 400°F (200°C) for load-bearing applications. Exceeding this limit causes creep deformation and eventual structural failure, even though melting occurs much higher.
A: Overheating causes a phenomenon known as hot shortness. The low thermal conductivity traps heat locally. The metal enters a semi-molten, fragile state. Thermal stress during the rapid cooling phase pulls the material apart. This creates severe, unrepairable micro-cracks along the heat-affected zone.
A: No. Pure copper melts at a higher temperature, roughly 1,984°F (1,085°C). Silicon bronze typically melts between 1,880°F and 1,940°F. However, adding silicon significantly improves weldability, casting fluidity, and overall tensile strength compared to unalloyed pure copper.
A: No. Internal engine temperatures frequently exceed the safe operating range of 400°F (200°C). Continuous exposure to engine-level heat causes softening and severe strength degradation. For extreme heat environments, engineers should specify materials like aluminum bronze, steel, or specialized high-temperature alloys.
