Designing robust mechanical assemblies requires extreme precision. You cannot afford guesswork when calculating spatial clearances. Engineers and procurement teams need exact physical dimensions for M8 spring washers. These exact measurements ensure proper clearance and tension in complex mechanical assemblies.
There is no single "standard" thickness for an M8 spring washer. Instead, thickness dictates load capacity. It varies strictly according to the specific DIN or ISO standard you select. For instance, DIN 127B components differ drastically from DIN 137 wave configurations.
This guide covers precise dimensional tolerances, material trade-offs, and critical evaluation criteria. We explore these factors to help you select the correct M8 Spring Washer for Machinery. Choosing the right profile prevents dynamic load failures. Read on to master assembly clearances and optimize long-term joint stability.
The thickness of an M8 spring washer typically ranges from 0.5mm to 2.0mm, depending heavily on its structural profile.
DIN 127B (Rectangular Profile) M8 washers are generally 2.0mm thick and serve as ductile spacing elements with light anti-vibration properties.
DIN 137 (Wave/Convex) M8 washers are significantly thinner (0.5mm–0.8mm) and act as cushioning devices for tight tolerances.
Selecting the correct washer prevents loss of initial pre-load, compensates for axial end-play, and reduces long-term maintenance costs (TCO).
Designing mechanical joints requires exact Z-axis clearance data. Assuming all M8 washers share the same thickness leads to severe assembly issues. You might experience joint binding. Alternatively, you might generate insufficient tension. Both outcomes compromise structural integrity.
To establish baseline clearances, we must categorize thickness by industrial standards. Below is a quick dimensional summary chart for standard M8 profiles.
DIN Standard | Profile Type | Typical Thickness (S) | Outer Diameter (OD) | Inner Diameter (ID) |
|---|---|---|---|---|
DIN 127B | Rectangular / Split Ring | 2.0mm | 14.8mm | 8.1mm |
DIN 137 (Type A) | Convex Washer | 0.5mm | 15.0mm | 8.4mm |
DIN 137 (Type B) | Wave Washer | 0.8mm | 15.0mm | 8.4mm |
DIN 6796 | Conical Disc / Belleville | 2.0mm | 18.0mm | 8.4mm |
The DIN 127B profile represents the traditional split ring design. Engineers commonly deploy it in general manufacturing. For an M8 specification, the material thickness (S) measures exactly 2.0mm. The outer diameter (OD) spans 14.8mm. The inner diameter (ID) remains precisely 8.1mm.
We see a unique mechanical action here. The split design utilizes a rectangular cross-section. The width (b) measures roughly 3mm. This geometry provides increased flexibility under compression. It acts as a ductile spacing element. Ultimately, it delivers light vibration resistance for standard bolted joints.
Common Mistake: Avoid using DIN 127B washers on highly hardened mating surfaces. The split ends can gouge the metal. This action creates stress risers over time.
Wave washers serve a completely different mechanical purpose. They are much thinner. Type A (convex) washers measure just 0.5mm thick. Type B (wave) variants step up slightly to 0.8mm. Both share a 15mm outer diameter and an 8.4mm inner diameter.
The mechanism relies on a curved physical shape. This curvature provides a continuous spring-like action. We call this tolerance compensation. It allows assemblies to flex safely without requiring deep vertical clearance. Standard manufacturing hardness usually sits at HRC 45-50. This hardness rating ensures the washer will not flatten permanently under light loads.
Heavy industrial environments demand the DIN 6796 standard. This conical disc boasts a robust 2.0mm thickness. The outer diameter expands to 18mm. The inner diameter stays at 8.4mm.
Its physical mechanism is highly engineered. The cone shape flattens at a specific rate under applied pressure. Manufacturers design these to produce extremely high loads. They perform exceptionally well within highly constrained spatial footprints. You get massive tension retention without sacrificing valuable Z-axis space.
Matching the physical profile of an M8 Spring Washer for Machinery directly influences operational lifespan. You must align the washer type to the specific dynamic stress of your environment.
Heavy machinery constantly battles high-frequency vibrations. These forces try to unwind threaded fasteners. You need a solution to maintain initial pre-load against continuous dynamic loads.
This scenario creates the perfect use case for DIN 127B split washers. Consider engine mounts or industrial stamping presses. The 2.0mm rectangular profile absorbs initial shockwaves. It keeps the bolt head under constant tension. This continuous upward pressure prevents the threads from backing out during heavy operation.
Precision equipment faces entirely different challenges. You often encounter accumulated tolerance variations. We see this frequently in electric motor assemblies.
The DIN 137 wave washer solves this problem brilliantly. Wave washers act as cushioning devices in light-load applications. They effectively reduce axial end-play between fast-spinning rotors and outer bearings. By taking up this slack, they eliminate annoying rattling. They also prolong bearing life by maintaining gentle, consistent alignment.
Best Practice: Always use wave washers when assembling sheet metal enclosures. They prevent surface distortion while maintaining a snug, rattle-free fit.
Some engineering designs leave almost no room for hardware. You might have only a few millimeters of vertical clearance. Yet, the joint requires massive tension retention.
The DIN 6796 conical disc excels here. Standard multi-coil springs demand significant space. Belleville springs do not. At just 2.0mm thick, they deliver immense holding force. You will commonly find them in heavy flange connections. They also dominate in hydraulic cylinder mountings where space is an absolute premium.
Initial component pricing often misleads procurement teams. Cheaper initial unit costs often result in higher assembly downtime. If the washer material degrades under environmental stress, your entire machine fails.
We must analyze material grades through a Total Cost of Ownership (TCO) lens. Material selection impacts maintenance schedules, replacement costs, and safety.
Standard industrial applications rely heavily on steel. Class 8.8 high tensile steel provides excellent baseline rigidity. It handles general mechanical stress effortlessly.
However, bare steel rusts quickly. Clear or mechanical zinc finishes significantly slow these corrosion rates. Zinc acts as a sacrificial barrier in normal atmospheric conditions. This combination proves optimal for dry industrial setups. It balances cost-efficiency with acceptable longevity.
Corrosive environments destroy standard zinc-plated steel. You need superior metallurgy for these applications. We turn to stainless steel grades.
A2 stainless covers standard outdoor exposure. A4 stainless equates to 316-grade steel. The industry refers to A4 as marine grade. The ROI logic is straightforward here. A4 delivers substantially higher resistance to tarnishing. It fights off aggressive chemical corrosion. Specifying A4 reduces maintenance intervals in marine applications. It also dominates in chemical processing plants and hygienic wash-down environments.
Some machinery requires properties beyond simple tension and corrosion resistance. You might encounter unique electrical or magnetic constraints.

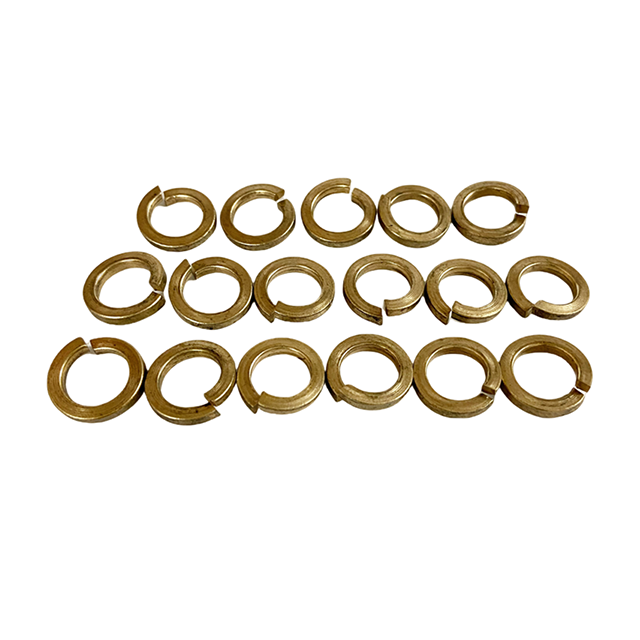

Manufacturers deploy specialized alloys like Phosphor Bronze in these rare cases. This material provides distinct advantages. It offers excellent electrical conductivity for grounding applications. It boasts natural anti-galling properties. Furthermore, it maintains specific non-magnetic characteristics. You often see Phosphor Bronze washers in sensitive aerospace instruments or MRI machine assemblies.
Sourcing standard hardware carries hidden risks. Inconsistent batch tolerances create massive headaches on the assembly line. Improper heat treatment causes catastrophic failures. If a batch fails to meet the standard HRC 45-50 hardness rating, washers snap under pressure. This ruins joint integrity across an entire production run.
You must evaluate suppliers rigorously. Look past simple pricing sheets. Focus on quality assurance infrastructure.
Standardization & Certification: Demand strict adherence to DIN and ISO specifications. A reliable manufacturer maintains modern quality management systems. Ensure they hold ISO 9001 certification. You should also verify full RoHS and REACH compliance for international shipping.
Material Matrix Availability: Industrial designs evolve rapidly. You need a partner capable of growing with your requirements. Assess their ability to source across the entire material spectrum. They should supply standard steel, marine-grade stainless, and specialized alloys. This prevents fragmented supply chains.
Testing & Traceability: Never accept unverified hardware. Top-tier vendors provide comprehensive data. Request verifiable load-deflection curves. Ask for batch-specific hardness testing results. Demand dimensional tolerance control charts. Traceability ensures accountability if field failures occur.
Best Practice: Request sample batches before authorizing full-scale production runs. Run these samples through your own torque-tension testing protocols. This physical validation prevents costly recalls.
The fundamental question "how thick is an M8 spring washer" must always be answered with a direct follow-up: "Under which standard?" Assuming uniformity across different profiles guarantees mechanical failure.
Evaluating standard hardware for complex machinery involves looking past basic Z-axis dimensions. You must carefully align spring rates, material grades, and physical profiles. These choices directly impact your assembly’s long-term operational lifespan. A wave washer serves a vastly different purpose than a heavy-duty Belleville spring.
Before initiating bulk procurement, engineers should cross-reference their assembly's maximum dynamic load. Review your spatial clearance limits carefully. Compare these figures directly against vendor-supplied DIN specification sheets. Taking this calculated approach secures joint integrity and drives down long-term maintenance costs.
A: No. A wave washer is a specific type of spring washer defined by DIN 137. It is typically much thinner (0.5mm-0.8mm) and relies on a curved shape to provide tension. A standard split spring washer (DIN 127B) is thicker (2.0mm) and uses a split rectangular profile to resist vibration.
A: Torque values depend heavily on the mating bolt grade (e.g., Class 8.8 vs 10.9) and the specific DIN standard of the washer. Over-torquing flattens wave washers permanently. You must consult specialized engineering torque charts matched to your specific hardware combination.
A: It is highly discouraged. Mixing dissimilar metals introduces the risk of galvanic corrosion, especially in moist environments. It can also cause severe thread galling. Engineers advise matching the washer material grade directly to the fastener material wherever possible.
