Views: 0 Author: Site Editor Publish Time: 2026-05-15 Origin: Site
Material selection dictates the reliability of modern electrical infrastructure. Every joint carries immense responsibility. Improper hardware choices frequently lead to high-resistance joints. These flaws cause severe thermal failure over time. They can even trigger catastrophic equipment degradation. Procurement teams face a difficult dilemma daily. A silicon bronze fastener carries a significant cost premium over standard zinc-plated or stainless steel hardware. Engineers must justify this upfront expense. They cannot inflate project budgets unnecessarily.
We will establish a clear, engineering-backed framework for your next project. You will learn exactly when this premium alloy is a technical necessity. We also explore when standard materials suffice. You will discover practical ways to optimize your hardware choices safely. This approach ensures maximum electrical reliability without wasting capital.
Specify silicon bronze primarily to prevent galvanic corrosion when fastening copper components (e.g., busbars, grounding systems).
Use standard plated steel if the fastener acts purely as a mechanical clamp; mandate silicon bronze if the fastener itself forms part of the active electrical current path.
Silicon bronze outperforms stainless steel in low-oxygen, high-moisture environments by resisting crevice corrosion while remaining inherently non-magnetic.
Select Grade C65100 for higher electrical conductivity and Grade C65500 for maximum tensile strength in heavy-duty mechanical lugs.
Electrical failures frequently originate from degrading joints. Component failure is rarely the primary culprit. Material incompatibility drives these joint failures over time. We must address the chemistry of these connections to prevent degradation.
Matching a bronze alloy with copper components is critical here. It effectively neutralizes the chemical potential difference. Standard zinc-plated steel creates a highly reactive galvanic couple. When you place it against noble copper, the zinc acts as a sacrificial anode. It corrodes rapidly. Once the zinc vanishes, the bare steel rusts. This rust expands and pushes the joint apart. It reduces surface contact area and increases electrical resistance. This harmony between copper and bronze prevents galvanic corrosion entirely across the asset's lifespan.
Thermal and magnetic stability also play major roles in joint health. The alloy features a thermal expansion rate closely matching copper. This prevents loosening during repetitive thermal cycling. Electrical loads fluctuate drastically throughout the day. These fluctuations cause expansion and contraction. Matched materials move together seamlessly. They keep the joint securely fastened over decades of use.
Furthermore, bronze offers strictly non-magnetic properties. You absolutely need this feature for sensitive electrical equipment.
It protects sensitive switchgear from magnetic interference.
It prevents eddy currents in large industrial transformers.
It secures particle accelerator components without disrupting magnetic fields.
It eliminates unwanted inductive heat generation in heavy current nodes.
What about conductivity baselines? Silicon bronze delivers approximately 6–10% IACS conductivity. This baseline falls below pure copper components. However, it sits substantially higher than standard steel alloys. This crucial baseline prevents dangerous heat buildup in conductive nodes. You must maintain low resistance across all critical joints. Bronze ensures stray currents safely dissipate without catastrophic overheating.
Engineers need strict rules for hardware selection. You cannot guess when to apply premium alloys. We use a three-tier evaluation system to guide these decisions.

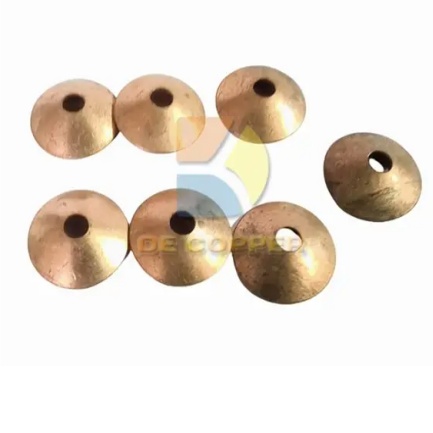

Sometimes the bolt, nut, or washer acts as a conductive bridge. You might use a bronze washer as a spacer between two non-mating lugs. Current must flow straight through the fastener itself in this configuration. Standard steel introduces unacceptable resistance in this scenario. It creates severe thermal risks. Steel heats up rapidly under heavy electrical loads.
A bronze alloy becomes mandatory here. It maintains safe current flow across the gap. It prevents arc flashes caused by thermal degradation. You cannot compromise on this rule under any circumstances. Doing so violates basic electrical safety standards. It puts both the facility and personnel at immediate risk.
We must maintain an objective view of mechanical clamps. Current often flows directly from lug to busbar. The fastener merely provides necessary clamping force. It sits completely outside the electrical path. Standard Grade 8 plated steel is usually sufficient here.
It proves much more cost-effective for indoor environments. Climate-controlled rooms keep ambient moisture levels low. Steel handles the mechanical stress perfectly well in these dry zones. However, note the primary exception. You must transition to a premium alloy if external environmental threats exist. Corrosive industrial plants quickly compromise standard steel clamps. Acid fumes destroy zinc plating in weeks. When the clamp rusts, it loses crucial tension. Lost tension increases joint resistance rapidly. This eventually causes equipment failure.
Certain environments demand extreme corrosion resistance. Direct-burial grounding systems endure constant stress. Soil moisture and varying pH levels attack buried hardware constantly. Marine electrical panels face sustained moisture and high salinity. Saltwater quickly destroys standard hardware.
We strongly recommend upgrading your fasteners for these high-risk exposures. Standard zinc plating flakes away rapidly in salt spray. Bronze naturally develops a protective outer patina. This patina shields the inner metal from further chemical attack. It ensures your grounding grid remains intact and functional for decades.
Engineers often suggest alternative materials to save money. We must defend the premium strictly based on material science and operational realities.
Many assume stainless steel provides universal corrosion protection. This is a dangerous misconception. Stainless steel relies heavily on ambient oxygen. It uses this oxygen to maintain a passive chromium oxide protective layer. Tight, oxygen-starved electrical joints defeat this mechanism entirely. Underground environments also block crucial oxygen flow.
This lack of oxygen triggers severe crevice corrosion. The passive layer breaks down rapidly. Deep pits form within the metal. The bolt eventually snaps under normal tension. Silicon bronze performs entirely differently. It forms a stable, protective oxide layer regardless of oxygen exposure. It thrives in tight, buried, or submerged spaces. It also remains completely non-magnetic. Some stainless alloys actually become magnetic after heavy cold working.
Let us compare bronze against standard brass. Brass harbors hidden structural vulnerabilities. It suffers from dezincification in damp conditions. Moisture leaches the zinc directly out of the alloy. The hardware turns spongy and brittle. It snaps under basic mechanical pressure. This causes sudden mechanical failure in critical panels.
Silicon bronze is completely immune to dezincification. It contains no zinc to leach out. It also boasts superior tensile strength. It handles up to 550 MPa of stress. This strength comfortably supports high-torque electrical connections. Brass strips or deforms heavily under similar torque.
Material
Crevice Corrosion Risk
Dezincification Risk
Max Tensile Strength
Magnetic Interference
Silicon Bronze | Very Low | Zero | Up to 550 MPa | None |
Stainless Steel (316) | High in tight spaces | Zero | ~515 MPa | Low/Variable |
Standard Brass | Low | High in moisture | ~350 MPa | None |
Choosing the correct grade determines joint success. Manufacturers produce several distinct variations of this alloy. We typically evaluate two primary grades for electrical hardware. Each serves a highly specific operational purpose.
Grade C65100 serves as the low-silicon option. It contains roughly 1% silicon. It includes minor additions of iron and manganese. We specify this grade for precision electrical connectors. It shines when you prioritize maximum relative conductivity. It sacrifices a small amount of sheer clamping force for better current flow. Manufacturers find it much easier to machine. This allows for complex custom hardware designs. You will often see it in delicate internal switchgear components. It handles tight manufacturing tolerances beautifully.
Grade C65500 serves as the high-silicon option. This grade contains approximately 3% silicon and 1% manganese. We reserve it for high-stress mechanical applications. You will find it in heavy transformer lugs. It also secures heavy structural switchgear framing. It prioritizes maximum yield strength above all else. It offers ultimate corrosion resistance for demanding outdoor environments. You sacrifice a tiny bit of conductivity for massive mechanical gains. We rely heavily on C65500 for large-scale utility projects. It holds thick, heavy copper busbars together tightly.
Selecting the right material only solves half the problem. You must install it correctly. Poor installation practices ruin premium hardware daily. We follow strict field guidelines to ensure total success.
Thread galling presents a constant installation risk. Bronze possesses minor self-lubricating properties. However, you still need careful torque management. High-friction environments cause threads to lock permanently. You must use appropriate anti-seize compounds during assembly. Ensure these compounds remain compatible with electrical conductivity. Copper-based anti-seize pastes work wonderfully here. They prevent thread stripping under heavy loads. They also maintain the necessary electrical pathway without adding resistance.
Hardware matching is a strict operational requirement. You must use matching bronze nuts and washers. Do not mix bronze bolts with stainless or zinc nuts. Doing so reintroduces the exact galvanic corrosion risk you just paid to avoid. Always specify a complete, matching silicon bronze fastener assembly. We see many joint failures caused by mixed metals. A zinc washer will dissolve rapidly against a bronze bolt.
Let us review the proper installation sequence for maximum reliability:
Clean all mating surfaces thoroughly to remove any existing oxidation or dirt.
Apply a very thin layer of conductive anti-seize directly to the bolt threads.
Assemble the joint using strictly matched bronze nuts and heavy washers.
Torque the assembly slowly to the manufacturer's specified limit using a calibrated wrench.
Perform a final resistance micro-ohm check across the newly secured joint.
Procurement teams need strong shortlisting logic. The higher upfront cost pays massive dividends over time. It eliminates costly maintenance intervals. Crews spend less time inspecting and tightening loose joints. It prevents catastrophic arc faults caused by loose or corroded connections. Finally, it significantly extends the lifecycle of expensive copper busbars. Replacing a melted busbar costs exponentially more than upgrading your fasteners. Proper material specification is a direct investment in long-term facility uptime.
You now have a definitive decision matrix. Use a premium bronze alloy when joint longevity is non-negotiable. Specify it when conductivity and galvanic compatibility matter most. Protect your active current paths from thermal degradation. Do not let cheap steel hardware compromise an incredibly expensive copper system.
Audit your current electrical hardware specifications today. Review all environmental stress factors across your facility. Look carefully for buried, submerged, or highly corrosive zones. Identify joints where current flows directly through the bolting hardware. Upgrade these specific nodes immediately. Contact our engineering and sales team for a specific project quote and custom grade recommendation. We will help you secure your infrastructure safely and efficiently.
A: Yes. Standard steel is perfectly acceptable if it does not form part of the active current path. It works well in dry, climate-controlled environments. Just ensure the bolt solely provides clamping force between mating surfaces. You must upgrade to bronze if moisture or corrosive fumes are present.
A: This is a common industry spelling error. "Silicon" refers to the hard, conductive metalloid element added to copper to create the alloy. "Silicone" is a synthetic rubber polymer used in sealants. You always want silicon bronze for structural and electrical hardware applications.
A: While the alloy offers minor self-lubricating properties, we strongly recommend using a conductive anti-seize compound. This prevents thread galling and binding under high torque. It ensures safe, repeatable maintenance over the years without stripping the delicate threads during removal.
A: Absolutely. They possess inherent non-sparking properties. This makes them ideal for highly volatile areas. Facilities handling oil, gas, and chemical processing rely heavily on them. They ensure safe electrical infrastructure without introducing dangerous ignition sources during impacts or heavy vibrations.
