Electrical systems rely heavily on high-quality conductive materials, and when it comes to rods used in electrical applications, two primary options dominate the market: copper rods and brass rods. Choosing the right material can significantly affect performance, energy efficiency, durability, and overall system reliability.

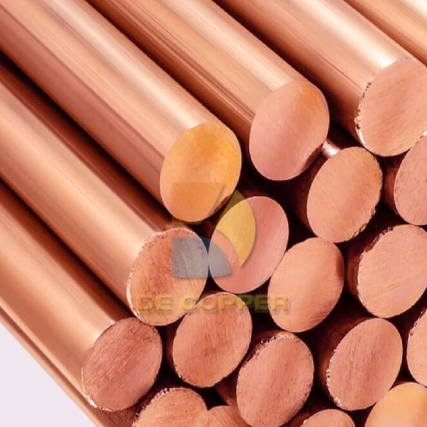

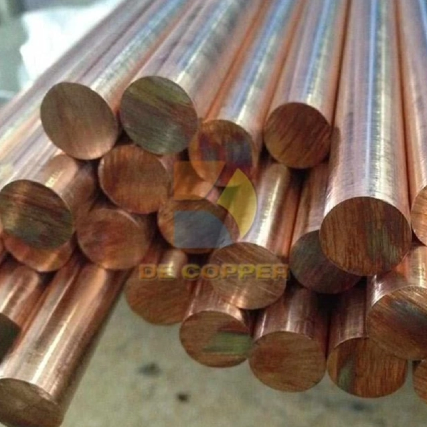

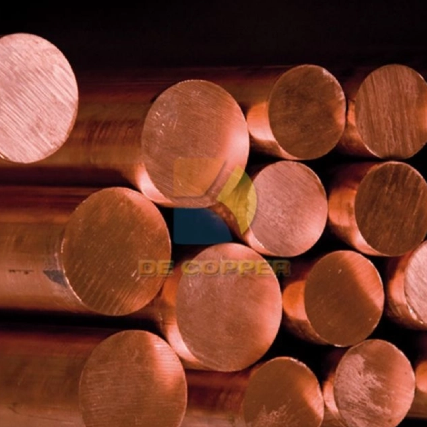

Copper has been a cornerstone of electrical engineering for over a century due to its excellent conductivity, flexibility, and thermal stability. Copper rods are essentially cylindrical bars made from high-purity copper, available in various diameters and lengths depending on the application.
Copper is renowned for its high electrical conductivity, with a conductivity rating of approximately 97% IACS (International Annealed Copper Standard). This allows copper rods to carry large currents with minimal voltage drop and heat generation. The high conductivity ensures:
Reduced energy losses in electrical circuits
Efficient performance in transformers, motors, and switchgear
Minimal overheating under high-load conditions
In contrast, materials with lower conductivity require larger cross-sections to carry the same current, increasing cost and weight.
Copper's excellent thermal conductivity (~400 W/m·K) allows it to dissipate heat effectively. This property is critical in applications such as:
Power distribution bars
Busbars in switchgear and panels
Motor windings
Efficient heat dissipation reduces the risk of thermal damage, enhances lifespan, and improves system safety.
Copper rods are ductile and malleable, which makes them easy to bend, shape, and draw into wires or strips without cracking. They also exhibit good tensile strength (~210–250 MPa) and can endure repeated thermal cycling, which is important for dynamic electrical environments where vibration and temperature fluctuations are common.
Copper naturally forms a thin, protective oxide layer that prevents deeper corrosion. While not entirely impervious, this property makes copper rods highly durable in indoor and controlled outdoor environments.
Brass is an alloy of copper and zinc, often including small amounts of other metals like lead or tin to enhance machinability. Brass rods combine some of the properties of copper with additional strength and rigidity.
Brass rods have lower electrical conductivity than pure copper, typically ranging between 20–45% IACS depending on the alloy composition. While suitable for some low-current or signal applications, brass rods are generally less efficient for high-current electrical systems.
One of the advantages of brass rods is enhanced mechanical strength and hardness. Brass resists wear and deformation better than copper, making it suitable for:
Mechanical fittings
Connectors and terminals
Components exposed to friction or vibration
The increased rigidity allows brass rods to maintain shape under mechanical stress, which is valuable in hardware applications where electrical conductivity is secondary.
Brass exhibits good corrosion resistance, especially in moist and mildly corrosive environments. Certain brass alloys are engineered to resist dezincification—a form of corrosion where zinc is leached from the alloy—which extends service life in plumbing and marine applications.
Brass rods are easier to machine than pure copper due to their hardness and uniform grain structure. They can be cut, drilled, or threaded with minimal tool wear, making them a preferred choice for precision components like electrical terminals, fasteners, and bushings.
When deciding between copper and brass rods for electrical applications, several key factors should be considered:
Feature | Copper Rod | Brass Rod |
Electrical Conductivity | Very high (~97% IACS) | Moderate (~20–45% IACS) |
Thermal Conductivity | Excellent | Moderate |
Tensile Strength | Moderate (~210–250 MPa) | Higher (varies by alloy, ~300–600 MPa) |
Ductility | High | Moderate |
Corrosion Resistance | Good (forms oxide layer) | Good (resistant to dezincification) |
Machinability | Fair | Excellent |
Cost | Higher than brass | Generally lower than pure copper |
From the table, it is evident that copper rods excel in electrical and thermal performance, while brass rods provide better mechanical strength and machinability. The choice ultimately depends on the application requirements.
Copper rods are widely recognized as the gold standard for electrical conductivity, making them indispensable in applications that require reliable, efficient current flow. Their superior electrical and thermal properties allow them to handle high-load conditions with minimal energy loss and heat buildup.
Power Transmission and Distribution
Copper rods are commonly used in busbars, conductors, and grounding rods in electrical substations, industrial plants, and commercial buildings. Thanks to their high conductivity, they can carry large currents safely without significant voltage drops. This ensures stable power delivery and reduces the risk of overheating, which is crucial for both safety and efficiency.
Electric Motors and Generators
In electric motors and generators, copper rods are used to wind coils and armatures. The low resistive losses of copper help maintain performance efficiency while minimizing heat generation. This results in smoother operation, lower energy consumption, and improved reliability for motors driving pumps, compressors, or industrial machinery.
Transformers and Switchgear
High-purity copper rods are preferred in transformers, circuit breakers, and switchgear components. Their excellent conductivity reduces voltage drop and power loss, while their thermal stability ensures components remain cool under heavy load. Reliable copper rods in these systems directly impact operational efficiency and reduce maintenance frequency.
High-Frequency Electronics
Copper rods are also used in RF circuits, high-speed electronics, and signal transmission systems, where minimal resistance and inductive losses are critical. The high conductivity reduces signal attenuation, maintaining integrity in sensitive electronic devices or communication networks.
Brass, an alloy of copper and zinc, has lower conductivity than pure copper but offers mechanical strength, corrosion resistance, and excellent machinability. These characteristics make brass rods ideal for applications where durability and precision are more important than maximum current-carrying capacity.
Electrical Connectors and Terminals
Brass rods are commonly used for connectors, terminals, and busbar fittings. The material maintains shape under mechanical stress, ensuring secure and reliable connections over time. Brass's strength reduces deformation risks, which is especially valuable in industrial and automotive environments where vibration and mechanical load are frequent.
Fittings and Hardware
Components like screws, bushings, fasteners, and mounting brackets often utilize brass rods. The alloy is easy to machine, allowing manufacturers to produce precise parts quickly. Its corrosion resistance ensures these fittings maintain integrity in indoor and outdoor environments, including areas with mild moisture or exposure to chemicals.
Signal Lines and Low-Current Applications
For signal wiring, control circuits, and low-current applications, brass rods provide a balance of conductivity and mechanical durability. While not suitable for high-current power distribution, they are perfect where electrical performance is secondary to robustness and ease of installation.
Specialized Environments
Certain brass alloys are treated to resist dezincification, making them suitable for marine or corrosive environments where copper alone might not provide sufficient structural stability. These alloys extend component lifespan while maintaining reasonable electrical performance for low-current applications.
Choosing between copper and brass rods requires consideration of several critical factors:
Current Load: High-current applications demand copper for efficient energy transfer and minimal heat generation.
Mechanical Stress: Components subjected to vibration, bending, or torque may benefit from brass due to its superior strength.
Environmental Exposure: Brass alloys with anti-dezincification properties perform better in corrosive, wet, or marine conditions.
Budget Constraints: Brass is generally less expensive than copper, but this cost saving may reduce electrical efficiency in power-critical systems.
Fabrication Requirements: Brass is easier to machine, drill, and thread, which can reduce manufacturing time and costs, while copper may require specialized tooling and care to avoid damage.
By evaluating these factors, engineers and electricians can select the material that optimally balances performance, durability, and cost for their specific application.
Proper maintenance ensures that both copper and brass rods deliver long-term performance:
Copper Rods: Inspect for signs of corrosion or oxidation, particularly in humid or industrial environments. Cleaning and polishing can maintain conductivity, prevent overheating, and extend service life.
Brass Rods: Monitor for dezincification, mechanical wear, or surface damage. Brass components exposed to vibration or stress should be regularly checked to prevent loosening or deformation.
Routine Inspection: Conduct regular electrical tests, visual inspections, and cleaning to prevent failure. Ensuring correct installation, secure connections, and proper grounding further enhances safety and reliability.
Storage: Keep spare rods in dry, temperature-controlled conditions to prevent surface oxidation or mechanical damage before installation.
Through careful selection, installation, and maintenance, both copper and brass rods can provide years of reliable service, ensuring that electrical systems operate safely and efficiently.
For electrical applications where high conductivity and thermal performance are essential, copper rods are clearly superior. They are ideal for power distribution, motors, transformers, and other high-current applications.
Brass rods, however, have their place in mechanically demanding or low-current applications, such as connectors, terminals, and fittings, where strength, corrosion resistance, and machinability are more important than peak conductivity.
Ultimately, the choice depends on balancing electrical performance, mechanical requirements, cost, and environmental conditions.
