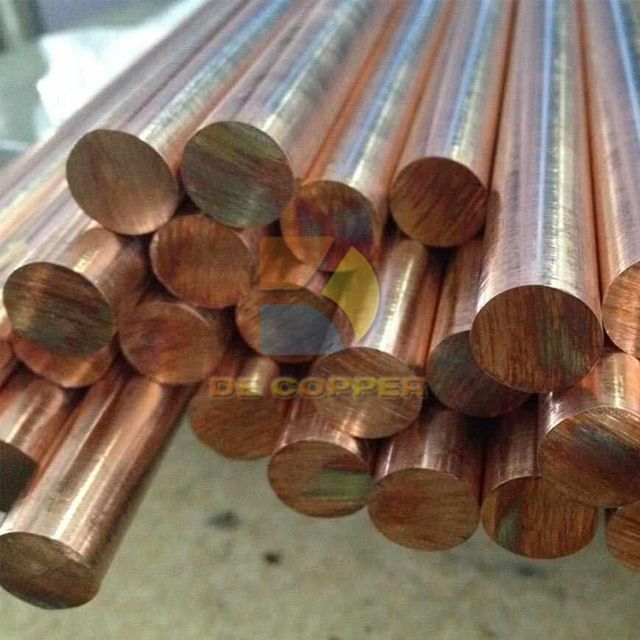

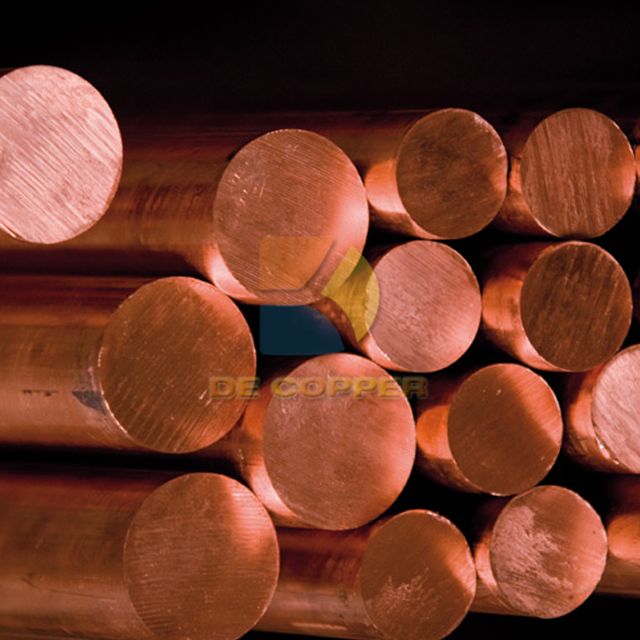

Chrome Zirconium Copper Rod

Product Description

Chromium-zirconium copper rods are high-end copper alloy profiles manufactured through precision melting, forging, and aging heat treatment processes. Featuring mainstream grades such as C18150, C18200, and CW106C, these rods utilize a pure copper base with precisely controlled additions of chromium and zirconium. Through scientific formulation and refined processing, they perfectly balance the superior electrical and thermal conductivity of pure copper with the enhanced strength and high-temperature resistance lacking in standard copper alloys. The material boasts a dense, uniform microstructure free from defects such as porosity, sand holes, cracks, or inclusions, and features a smooth, flat surface with exceptional dimensional accuracy. Combining excellent conductivity, mechanical strength, resistance to softening at high temperatures, and resistance to wear and ablation, these rods serve as critical components for industrial applications requiring high conductivity, high strength, and high-temperature performance; they can be custom-fabricated to meet specific requirements and are suitable for use in various precision equipment and industrial production lines.

Core Product Advantages

1. Balanced performance and exceptional cost-effectiveness: Unlike pure copper—which suffers from low hardness, susceptibility to deformation, and softening at high temperatures—or standard copper alloys that lack thermal and electrical conductivity, this product achieves an electrical conductivity of 80%–90% IACS (approaching pure copper standards). Simultaneously, it offers tensile strength and hardness far superior to pure copper, combining high conductivity, high strength, and high-temperature resistance to address key challenges in industrial material selection.

2. High-temperature resistance and operational versatility: Optimized through a proprietary solution-aging heat treatment process, the product features a significantly elevated softening temperature. It withstands long-term operation under high-temperature, high-frequency, and high-pressure conditions without deforming, loosening, or failing. This eliminates the issues of softening and performance degradation common in standard copper materials, making it ideal for continuous, high-intensity operations.

3. Wear and ablation resistance with doubled service life: Chromium and zirconium alloying elements form stable, hardening precipitates that significantly enhance surface wear resistance, resistance to arc ablation, and crack resistance. When used as welding electrodes or conductive components, the material exhibits minimal wear, offering a service life 2–4 times longer than standard copper products and drastically reducing the frequency of consumable replacements.

4. Excellent machinability for diverse customization: With superior plasticity and toughness, the material is easily processed via cutting, drilling, turning, polishing, and bending. It resists chipping, cracking, and deformation during machining, ensuring high dimensional accuracy and meeting diverse customization needs for precision parts, complex shapes, and standard profiles.

5. High stability and reduced maintenance costs: The material boasts outstanding oxidation, corrosion, and fatigue resistance. It remains stable during long-term operation—resisting oxidation, discoloration, and contact failure—thereby enhancing equipment reliability, minimizing downtime for repairs, and lowering overall production, maintenance, and consumable procurement costs.

Key Product Features

1. Stable Physical and Chemical Properties: Precise control over chemical composition with compliant chromium and zirconium ratios; the material features a dense, uniform internal microstructure free from porosity defects, ensuring consistent mechanical and electrical performance across batches.

2. Excellent Electrical and Thermal Conductivity: Offers top-tier conductivity and thermal efficiency for copper alloys, minimizing transmission losses and enabling rapid heat dissipation; effectively channels heat away during operation to reduce the risk of high-temperature equipment failure.

3. Superior Mechanical Properties: Maintains high hardness, tensile strength, and yield strength at both ambient and elevated temperatures; exhibits strong resistance to compression, impact, and deformation, capable of withstanding high-frequency reciprocating operations and high-pressure loads.

4. High-Precision Manufacturing: Formed via precision forging and rolling processes, ensuring accurate straightness and roundness; the surface is smooth and free of burrs or oxide layers, with dimensional tolerances controlled within tight limits to meet precision assembly requirements.

5. Excellent Weather and Corrosion Resistance: Offers good resistance to atmospheric oxidation and mild acid/alkali corrosion; suitable for diverse and complex environments—including indoor industrial workshops, outdoor equipment, and marine settings with mild corrosivity—ensuring broad application versatility.

6. Good Welding Compatibility: Ideal for resistance welding electrodes; produces minimal sparking, a stable weld pool, and smooth weld joints during the process; resistant to material sticking and burn-out, resulting in high product yield and suitability for automated welding production lines.

Product Specifications

1. Common Grades: C18150, C18200, CW106C, CuCr1Zr

2. Diameter Range: Standard diameters of 6mm–120mm; customization available for ultra-fine or extra-large diameters

3. Length Specifications: Standard lengths of 1000mm, 2000mm, and 2500mm; cut-to-length service available for any size between 10mm and 3000mm

4. Key Parameters: Electrical conductivity 80–90% IACS, hardness ≥ HRB78, tensile strength ≥ 550 MPa, softening temperature ≥ 480°C

5. Machining Precision: Dimensional tolerance ±0.02mm, surface roughness Ra ≤ 0.8μm, high straightness with no bending

6. Supply Condition: Hard or semi-hard temper; material hardness and toughness can be adjusted based on processing requirements

Product Features

● Excellent Cold Workability: The alloy’s composition ensures easy cold processing, perfect for various forming and molding operations.

● High Wear Resistance: Thanks to the zirconium and chromium content, this rod has excellent wear and tear resistance, enhancing its longevity in demanding applications.

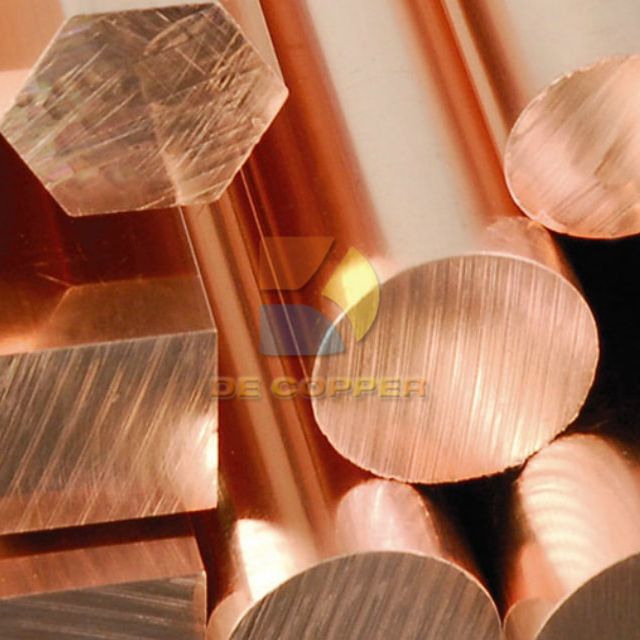

● Versatility: Available in a variety of shapes, including hexagonal, round, and square, allowing for use in a wide range of industries.

● Efficient Welding: Ideal for applications in resistance welding, the rod provides optimal performance in welding electrodes, reducing costs.

● High surface finish, no scratches: Ensures a smooth, polished surface for enhanced durability and aesthetic appeal.

● Accurate tolerance dimensions: Guarantees precise measurements and consistency across all product batches for optimal performance.

Wide range of applications

1. Welding Equipment Industry: Used for core components such as electrodes, electrode caps, electrode arms, and conductive shafts in resistance spot, projection, and seam welding equipment. These materials are widely applied in automated production lines for automotive parts, hardware products, and sheet metal welding, serving as a preferred choice for welding consumables.

2. Power and Electrical Industry: Utilized in the manufacture of high-voltage switches, contactors, relays, high/low-voltage busbars, terminals, and high-current connectors. Their high electrical conductivity, wear resistance, and high-temperature stability ensure the safe and reliable operation of power equipment.

3. Mold Manufacturing Industry: Employed for heat-dissipating inserts, mold cores, and cooling guide pillars in injection, die-casting, and continuous casting molds. Their rapid thermal conductivity allows for quick, uniform mold temperature regulation, enhancing molding precision while minimizing thermal deformation and mold sticking issues.

4. New Energy Industry: Suitable for conductive connectors in new energy vehicle motors and batteries, core conductive parts for charging piles, and conductive assemblies for energy storage equipment; designed to withstand the high-frequency, high-temperature, and high-load operating conditions of new energy systems.

5. Precision Machinery, Aerospace, and Defense: Used to produce conductive components for precision instruments, wear-resistant mechanical bushings, lightweight conductive structural parts for aerospace, and conductive fittings for marine equipment, meeting the rigorous performance standards of high-end precision manufacturing.

6. Electrical Discharge Machining (EDM) Industry: Serving as an electrode material for EDM, it offers stable discharge, low wear rates, and high machining precision, effectively meeting the requirements for processing precision molds and complex components.

Production process and quality management:

The production process of chromium zirconium copper rods includes vacuum melting, vacuum casting, rapid solidification, ring rolling and deformation heat treatment, which ensure the quality and performance of the products. The best mechanical and physical properties can be obtained by combining heat treatment with cold processing.

Chromium zirconium copper rods are widely used in many industrial fields due to their excellent physical and mechanical properties, and their high quality and high performance are guaranteed by advanced production processes.

Product Shipping Instructions

1. Protective Packaging: Products undergo meticulous polishing and cleaning before leaving the factory, ensuring surfaces are free of stains or oxidation. They are secured with double-layer protective packaging—an inner film wrap combined with an outer layer of reinforced thick cardboard boxes, wooden crates, or pallets—to prevent bumps, scratches, deformation, moisture damage, or oxidation during transit. Precision-specification products are individually packaged.

2. Transportation: Expedited production and delivery are available for custom specifications. Optimal transportation solutions are selected based on delivery distance and shipment volume, balancing delivery speed with cost-efficiency.

Authentic User Reviews

1. Welding equipment manufacturer: "We have been purchasing this chromium-zirconium-copper rod in bulk for welding electrodes. Compared to the pure copper we used previously, electrode wear has dropped significantly, and the frequency of replacements has been more than halved. The resulting weld points are uniform and smooth, with no issues like cold joints or burn-through. Production line downtime has decreased markedly, making it highly cost-effective for long-term procurement."

2. Mold manufacturing enterprise: "It performs excellently as a heat-dissipating mold insert; it offers rapid thermal conductivity and ensures uniform mold temperatures, resulting in fewer molding defects. The material withstands high temperatures without softening or deforming during prolonged, repeated high-heat operations. It is easy to machine, and the precision fully meets our standards."

3. New energy electrical component manufacturer: "The material offers stable electrical conductivity and does not overheat under high-current conditions. It has strong oxidation resistance, ensuring reliable contact over long-term use. The material is uniform and defect-free, and the custom-cut dimensions are precise, perfectly meeting our production needs for new energy conductive components."

4. Precision machining company: "The balance between toughness and hardness is ideal; the material does not chip or crack during turning or drilling, and the finished parts have a high-quality surface finish. Batch-to-batch consistency is excellent, eliminating the need for constant parameter adjustments and significantly boosting machining efficiency. After-sales support is also very responsive."

FAQ

1.  What industries typically use Chrome Zirconium Copper Rod?

a.  This rod is primarily used in electrical, mold, and welding industries, especially for applications requiring high strength and high wear resistance.

2.  Can this product be customized in diameter and length?

a.  Yes, the Chrome Zirconium Copper Rod is customizable in both diameter and length to meet specific application needs.

3.  How does DETONG ensure high product quality?

a.  DETONG utilizes advanced manufacturing processes, including vacuum melting and heat treatment, to guarantee the best mechanical and physical properties in every rod.

4.  What are the benefits of using Chrome Zirconium Copper Rod over other copper alloys?

a.  Compared to other copper alloys, it offers superior conductivity, wear resistance, and better overall performance in high-demand applications.

5.  Is there a minimum order quantity for bulk orders?

a.  DETONG offers flexible order quantities to accommodate both small and bulk orders. Please contact our sales team for more details.
